PSA O-3000 without compressor. Recommended for 3 kg O3/h ozone generator
PSA, Industrial Oxygen Generator of 22 Nm3/h, at a purity of 95% and a drying dew point of -40ºC, 230 V, 50-60 Hz, 55 W, for ozone generator of 3 kg O3/h.
It includes:
Inlet filter 7 Nm3/min.
Refrigeration dryer 6.8 Nm3/h, 1.5kw.
3-stage filter 7 Nm3/min. Oil <0.01ppm. Particles <0.01 micron.
Activated carbon filter 7 Nm3/min. Oil < 0,003ppm.
Dry air buffer tank 600L, 8 bar, with safety valve.

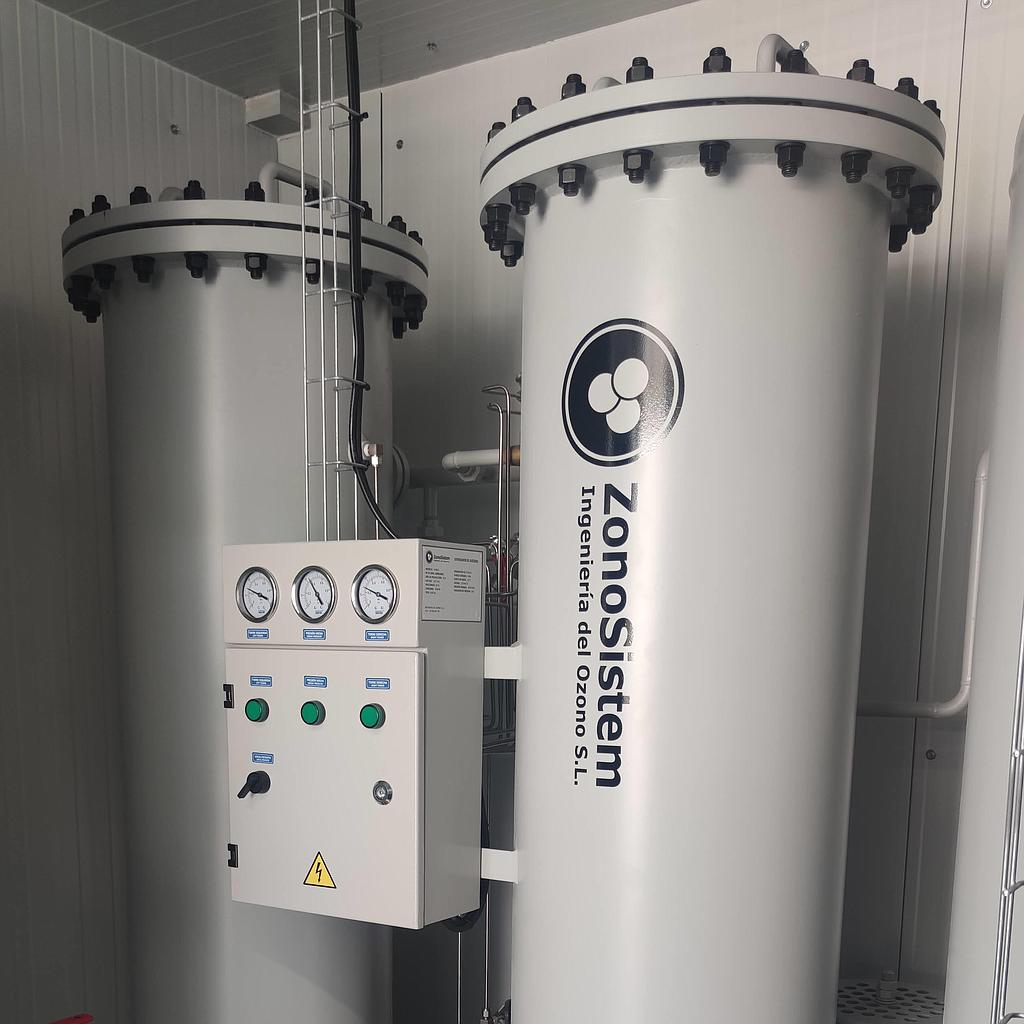

2 Zeolite columns 22Nm3/h.
Oxygen lung tank 600 L, 8 bars.
Oxygen purity analyser.
Flow meter 30Nm3/h.
Integrated PLC.
Compressed air supply compressor not included.
CE marked.
Characteristics:
Capacity to generate 22Nm3/h of oxygen at 95% purity.
Oxygen output pressure: at 0-5.5 bar, and at -40°C dew point.
Compressed air connection: DN 32.
Oxygen outlet connection: DN 40.
Nitrogen outlet connection: to silencer.
Weight: 3500kg.
Length x width x height: 3500 x 2500 x 2500 x 2875 mm
Requirements:
Requires a compressed air supply of 4.4 Nm3/min.
Power supply: 230v, 50-60hz. 2,3KW.
Room conditions: -20ºC to 40ºC, humidity <80%.
Dust in air<200mg/m3. H2S, SO2 <0.25mg/m3. CO2<600ppm. CnHm <0.05mg/m3.
Leave a clearance of 800 mm around the equipment.
Keep the room ventilated.
Do not install outdoors.
Manufacturing in 60-90 days
Industrial PSA Oxygen Generator
Technical specifications
What is it used for?
This oxygen concentrator is specifically used to generate ozone. Ozone is used in wastewater purification and disinfection treatments (WWTP), and public water purification (DWTP). It is also used in bleaching processes in the textile or paper industry. Also in fish farms, aquariums, recovery of lakes and agricultural ponds, irrigation water, etc.
Functioning
The oxygen concentrator receives dry, grease-free air from the air compressor, and is passed through the zeolite columns A, where the nitrogen is captured in the zeolite molecular structure, allowing only oxygen to pass through. When column A becomes saturated with nitrogen, the supply air is redirected to column B, depressurizing column A and releasing the nitrogen into the atmosphere. This cycle is repeated cyclically, always maintaining a constant flow of highly concentrated oxygen. The oxygen obtained is stored in an outlet buffer tank to stabilize the supply.
