HIDRO V GZO40-EPS Professional Ozone Plant

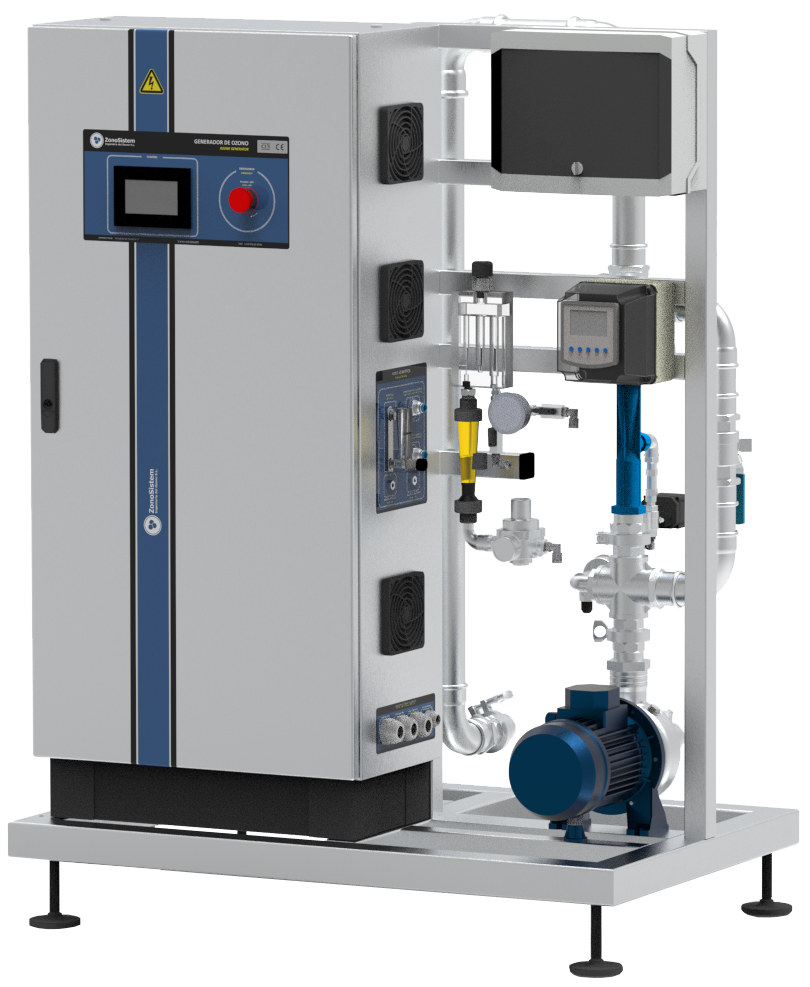

Planta Generadora de Ozono tipo Hidro V para tratamiento de agua en tanque. Con Generador de Ozono Profesional, con compresor, concentrador de oxígeno, PLC, sistema de dilución por venturi y bomba. Producción de ozono de 40 gO3/h, a 65 g/Nm3 de concentración. 400V, 50Hz, 3,2 kW.
[Diseño y fabricación Española] Ideal para inyectar ozono en depósito o tubería de agua.
[Sistema de dilución incorporado] Consigue inyectar ozono en el agua, gracias a la bomba y venturi.
[Funcionamiento automático PLC] Selecciona la cantidad de ozono que deseas y el sistema se autoajusta de manera automática.
[Instalación Sencilla] Solo tiene que conectar el equipo al tanque que deseas tratar y proporcionarle un punto de luz.
[Sin reposición de productos químicos] El ozono se genera a partir del aire que respiramos.
[Máxima Seguridad] El sistema controla todo el proceso e incluye sensor de fugas de ozono.
2 años de Garantía ampliable
Fabricación en 10 días
Professional Ozone Generator
Technical specifications
What is it used for?
To dose ozone in a water tank, maintaining a constant ozone concentration. Used to disinfect and purify water, tanks and pipes. Widely used in agricultural water treatment, for drip or sprinkler irrigation, in treatment of drinking water, wastewater, process water, cooling towers, swimming pools, aquariums, etc. Ozone is an excellent disinfectant, which allows you to maintain hygiene both in the water and in the pipes.
Product Details
| Ozone generator | Latest generation GZO40-EPS model |
| Oxygen concentrator | With compressor, oxygen concentrator at 95% purity and -30ºC Dew Point |
| Ozone Dilution System | Composed of pump, venturi and anti-return safety system |
| Control | By PLC with 4.3" touch screen. Recipe manager, daily programmer, alarm and maintenance manager. Power PID control based on Redox or Ozone dissolved. |
| Communication | Wired remote ON, Status relays (Initiated, Generating, Fault), Allows ModBus communication. Optionally allows Remote Access with full control with VPN router. |
| Sensors |
Amps in Ozone, Compressed Air Pressure, Oxygen Pressure and Flow, Ozone Leaks, Door Opening. In the plant: Redox control, maximum and minimum pressure switch in the tower, manometer. Optional dissolved ozone sensor. |
| Technical Valves | Outlet ozone solenoid valve, oxygen flowmeter with manual regulation. Stainless steel 316L motorized safety anti-return valve on the venturi. |
| Included in the packaging | User manual |
| Ozone Production | 40 gO3/h |
| Ozone concentration |
Maximum = 100g/Nm3 Optimum = 65 g/Nm3. |
| Air/Oxygen flow | 10 lpm |
| Power supply | 400V, 3P+N, 50Hz |
| Electric Power |
Ozone Generator = 1.7 KW Pump = 1.5KW |
| Hydraulic connection | Thread 1 1/2" Female |
| Dimensions | 1100 x 700 x 1500 mm (Width x Depth x Height) |
| Packed size | 1300 x 900 x 1750 mm (Width x Depth x Height) |
| Weight | 240 Kg |
| Humidity | <85% |
| Room temperature | 5-40ºC |
| Hydraulic Working Pressure | Between 0 and 6.5 bar |
| Fluid temperature | 5-30ºC |
| Fluid freatures | Ǿ Solids < 1mm; Suspended solids (SS)<150mg/l; Density = 1 g/cm3 ± 5% |
| Working pressure | 0 - 0,4 bar |
Room fittings
The room must be well ventilated, and provide an extraction system in case of leaks. Install sign with safety warnings. It is recommended that the room have a drainage box.
| Made by | ZonoSistem |
| Made in | Spain |
| Sold from | 2015 |
| Last revision | 2021 |
| Certificates | CE, BIOCIDA PT2, PT4, PT5, PT11 |
| Warranty | 2 years extendable indefinitely, with maintenance contract |
| UFI number | G000-W09P-Y00M-TV8V |
Functioning
This HIDRO V GZO-EPS ozone plant includes a touch screen from which you can easily and intuitively program different treatments throughout the day, using a recipe planner. When the equipment receives a start order, the refrigeration circuit is activated, and the compressor starts up, takes air from the atmosphere, filters it, dries it and introduces it into the PSA, where nitrogen is removed from the air, and the oxygen is concentrated to a purity of 95%. This flow of oxygen is conducted to the generation core, where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow. The recirculation pump takes water from the tank, and the ozone generated is injected into the venturi, returning a highly ozonated water to the tank, where it is homogenized and reacts with the pollutants. In this way you can disinfect the water, the tank and the pipes.
Included documentation
Safety manual.
User manual, installation and commissioning.
Maintenance manual.
Declaration of conformity.
Certificate of guarantee.
Compliance with the biocidal regulation.
Results of the Quality Test in the factory.
Technology
This GZO ozone generator uses high frequency corona discharge technology with ceramic dielectric.
