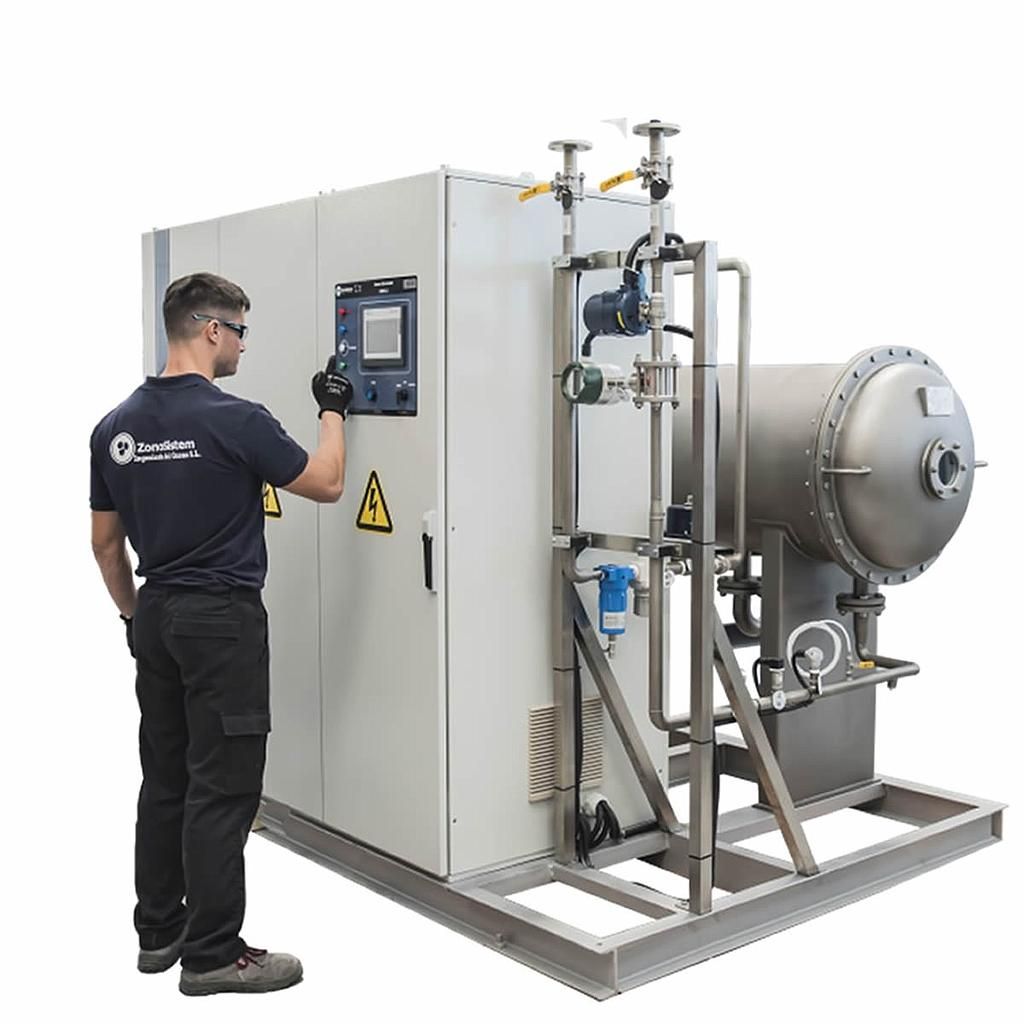

GRV100-EP Industrial Ozone Generator
Industrial ozone generator. Cooled by water. Able to work from LOX or PSA. It has PLC control with touch screen. Ozone production of 100KgO3/h, at 150g/Nm3 concentration. 750kW.
concentrator (PSA).
The equipment is robust, durable and reliable. It can work 24 hours a day. It achieves high concentrations of ozone with a very efficient rate of electrical consumption. Manufactured with high quality components and mounted on a metal base.It is ready to be plugged in and run.
The system includes a powerful control unit: a SIEMENS PLC with a 7" touch screen and with data
logging and remote access. It has full real-time control via VPN router. The equipment includes a valve for automatic regulation of the ozone flow. It also includes pneumatic and hydraulic control instrumentation.
Manufacturing in: Consult
Generador de Ozono Industrial
Ficha técnica
What is it used for?
This ozone generator is used for powerful wastewater treatment and disinfection (WWTP), and public water purification (DWTP). It is also used in bleaching processes in the textile and paper industries. It is also used in fish farms, aquariums, recovery of lakes and agricultural ponds, irrigation water, etc...
Product Details
| Ozone Generation system | Una Virola de 25KgO3/h, con dieléctricos de borosilicato. Refrigerado por Glicol. |
| Control | Por PLC con Pantalla Táctil 7" SIEMENS. Gestor de alarmas y mantenimientos. Regulación de potencia y caudal por lazo PID. |
| Refrigeration | El agua de refrigeración debe ser suministrado por el cliente. El equipo no incluye enfriadora. Puede adquirirla opcionalmente. También puede trabajar en circuito cerrado con intercambiador de calor. Vea Accesorios los modelos recomendados. |
| Communication | ON remoto cableado, Relés de estado (Iniciado, Generando, Fallo), Permite comunicación ModBus. Router VPN incluido para Acceso Remoto con Control total. |
| Oxygen concentrator | El oxígeno debe ser suministrado por el cliente, desde LOX o PSA. El equipo no incluye PSA. |
| Technical Valves | Válvula motorizada de entrada de oxígeno, Mano reductor con filtro en la entrada, Válvula proporcional para ajuste automático de caudal, Válvula motorizada de ozono de salida. Válvula de seguridad en la virola. |
| Sensors | Punto de Rocío del Oxígeno entrante. Caudal, Temperatura y Presión de gas Ozono resultante. Flujo y Temperatura de caudal de Refrigeración. Fugas de Ozono. Apertura de Puerta. |
| Included in the packaging | Manual de Usuario |
| Hydraulic connexion | IN/OUT DN100 |
| Gas connection | IN/OUT DN50 |
| Electric Power | 15 kW |
| Dimensions |
Generador de Ozono: 4250 x 1150 x 2000 mm (Ancho x Profundo x Alto) PSU: 4800 x 1000 x 2160 mm (Ancho x Profundo x Alto) |
| Air/Oxygen flow | Necesita 135 Nm3/h a 3-5 bares a 5-30ºC |
| Power supply | 380 -460 V, 3 P, 50-60 Hz |
| Recirculation Flow | Necesita 40 m3/h a 1 bar a 15-22ºC |
| Ozone concentration | Máxima = 200 g/Nm3 | Óptima = 148 g/Nm3 |
| Ozone Production | 25 kg O3/h |
| Weight |
Generador de Ozono: 2900 kg PSU: 4000 kg |
| Quality of the water that is refrigerated | Agua osmotizada + Glicol |
| Others | Admite venturi a la salida. |
| Working pressure | 0,6 - 1,4 bars |
| Humidity | < 85 % |
| Room temperature | 5 - 35ºC |
| Source gas | El equipo necesita un suministro de oxígeno bien LOX o PSA. |
| Gas quality | 95-99% de pureza de oxígeno, secado de -40ºC Punto de Rocío. |
| Room fittings | La sala debe estar bien ventilada, y prever sistema de extracción para caso de fugas. Instalar cartel con las advertencias de seguridad. |
| UFI number | G000-W09P-Y00M-TV8V |
| Made by | ZonoSistem |
| Sold from | 2019 |
| Last revision | 2023 |
| Certificates | CE, EUTOA, BIOCIDE |
| Warranty | 2 años ampliable indefinidamente, con contrato de mantenimiento |
| Made in | España |
Funcioning
When the ozone generator receives a start order, it opens the inlet valve allowing oxygen to enter the equipment. The range of desired oxygen pressure will be maintained. Once the pressure is regulated, the oxygen is conducted to the ozone generation system, where the oxygen is exposed to a strong electric field creating the ozone molecule, a very reactive and oxidizing gas. The gas flowmeter continuously measures the ozone flow rate which is adjusted to the desired value. The power in kw of the equipment can be varied manually on the screen or through an external 4-20mA signal.
If it does not detect water flow, oxygen flow, or the cooling temperature is not adequate, the generator will give an alarm and stop for safety
Documentation incluided
Safety manual.
User manual, installation and commissioning.
Maintenance manual.
Declaration of Conformity.
Certificate of guarantee.
Compliance with biocidal regulations.
Our Quality Test results.
Technology
The GRV's ozone generation technology is based on high-frequency corona discharge, with a 50,000V-resistant borosilicate dielectric. It works with voltages from 5,000 to 10,000v, and at a frequency of higher than 5khz. Made of materials with high resistance to ozone, 316L stainless steel, Viton and Teflon gaskets.
