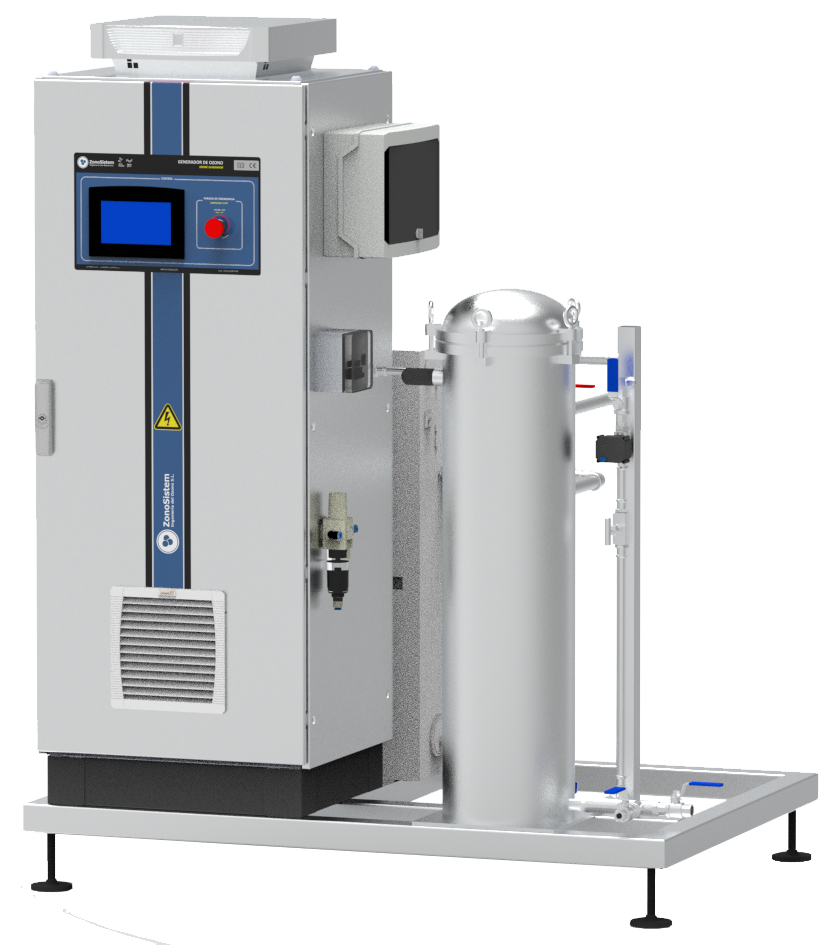

GR500-EP Industrial Ozone Generator. V4
Industrial Ozone Generator, cooled by water, to work from oxygen LOX or PSA. With PLC control with touch screen. Capacity to produce 500gO3/h of ozone, at a concentration of 148g/Nm3. 400V, 3P+N, 50Hz, 8.5kW.
Robust, durable and highly efficient industrial ozone generator, designed and manufactured in Spain. This ozone generator needs an oxygen supply to produce ozone, either from a liquid oxygen tank (LOX) or from an oxygen concentrator (PSA). It achieves high concentrations of ozone with a really efficient electricity consumption rate. It also includes a powerful control unit: PLC, touch screen, data logging and remote access. Made with high quality components.
2 years warranty (expandable if you have a maintenance contract)
Manufacturing in 30-40 days
Industrial Ozone Generator
What is it used for?
This powerful ozone generation system is mainly used in water disinfection and purification treatments. It is frequently used in wastewater treatment plants (WWTP), drinking water treatment plants (DWTP), agricultural irrigation lines, fish farms, aquariums, lake and water reservoir recovery, swimming pools, etc. It is especially indicated for those industries that already have an oxygen line installed.
|Ozone Generation system||500 gO3/h ferrule with borosilicate dielectric. Cooled by Water or Glycol.|
|Oxygen concentrator||Oxygen must be supplied by the customer, from LOX or PSA. The kit does not include PSA.|
|Refrigeration||Cooling water must be supplied by the customer. The equipment does not include a chiller. You can purchase it optionally. See Accessories.|
|Control||By PLC V700, 7". Recipe manager, weekly programmer, alarm and maintenance manager.|
|Communication||Wired remote ON, Status relays (Initiated, Generating, Fault), Allows ModBus communication. Optional VPN Router for Remote Access with Full Control.|
|Sensors||Ozone Amps, Oxygen Pressure and Flow, Refrigeration Flow and Temperature, Ozone Leaks, Door Opening.|
|Technical Valves||Motorized oxygen inlet valve, Manual reducer with inlet filter, Manually regulated oxygen flowmeter, Motorized outlet ozone valve. Proportional valve for automatic flow adjustment Optional.|
|Included in the equipment||Enfriadora|
|Included in the packaging||Dielectric spare parts + User's Manual|
|Ozone Production||500 gO3/h|
Maximum 200 gO3/Nm3.
Optimum 148 gO3/Nm3
|Air flow||60 lpm|
|Caudal de Refrigereación||50 lpm at 1 bar at 15-22ºC is needed|
|Power supply||400V, 3P+N, 50Hz|
|Electric Power||Ozone Generator = 8.5 KW|
|Gas connection||IN Ø10 mm tube / OUT Thread 1/2 "Female + with Connector for 10mm Ext.|
|Conexión Refrigeración IN/OUT||IN/OUT Tube 16 mm outside diameter|
|Dimensions||600 x 1300 x 1800 mm (Width x Depth x Height)|
|Room temperature||5 - 35ºC.|
|Source gas||The team needs an oxygen supply of either LOX or PSA.|
|Gas quality||95-99% oxygen purity, drying at -40ºC Dew Point.|
|Working pressure||0.7 Bar|
|Quality of the water that is refrigerated||Drinking water quality without chlorides in case of open circuit. Osmosis water + glycol in the case of a closed circuit.|
|Others||It admits venturi at the outlet.|
The room must be well ventilated, and provide an extraction system in case of leaks. Install sign with safety warnings.
|Certificates||CE, BIOCIDA PT2, PT4, PT5, PT11|
|Warranty||2 years extendable indefinitely, with maintenance contract|
This ozone generator equipment includes a touch screen to easily program different treatments throughout the day using a recipe planner. When the equipment receives a running order it opens a motorized inlet valve allowing oxygen to enter. This flow of oxygen is conducted to the generation part, where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow.
User manual, installation and commissioning.
Declaration of Conformity.
Certificate of guarantee
Compliance with biocidal regulations.
Our Quality Test results.
This GR ozone generator uses high frequency corona discharge technology with ceramic dielectric.
