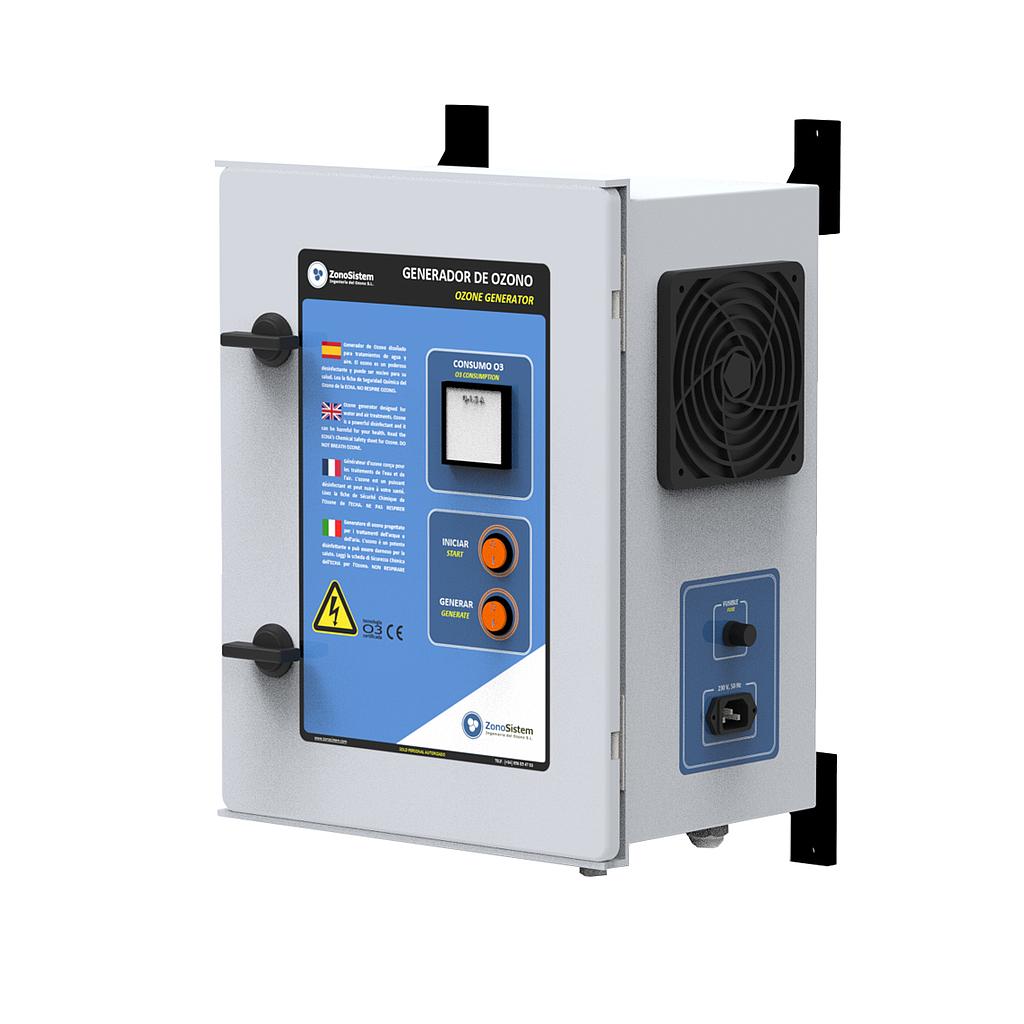

GZ3-E Commercial Ozone Generator

Ozone generator with compressor, with production of 3 gO3/h, at 3 g/Nm3 concentration. 230V, 50-60Hz, 160W.

Air-cooled ozone generating equipment, with low ozone concentration, with air compressor, air filter and silica gel dryer. With manual control of ignition by ON/OFF switch and manual ozone power control by potentiometer. With power indicator light and ozone amp consumption indicator. With input and output bushings for 8mm tube. Ready to plug and play.

Highly recommended
2 years warranty (expandable if you have a maintenance contract)
Manufacturing in 4 days

Request a quote

Commercial Ozone Generator

Technical specifications

What is it used for?

This generator is mainly used to carry out air and environment treatments, with the idea of eliminating odors and sanitizing the environment itself and surfaces. Used in cold rooms, hotel extraction hoods, and ventilation ducts. It is also used to disinfect small water tanks, by bubbling ozone.

Product Details

What´s included

Ozone Generation system Air-cooled 3gO3/h core. With borosilicate dielectric.
Electricity and electronic High voltage transformer, EMI filter, and fuse.
Compressed air unit Pre-filter
Silica gel dryer
Air pump + filter
Control Ignition with manual START and GENERATE switch. Regulation of the ozone power, by means of a manual potentiometer.
Sensors Ammeter
Technical Valves Air flowmeter with manual regulation
Included in the packaging 2 meters of 8mm Teflon Tube
2 meters of 8mm Silicone Tube
Silica Gel Fixing Clips + Silica Gel
Fixing Earmuffs
Electrical Connection Cable
User Manual

Technical features

Ozone Production 3 gO3/h
Ozone concentration 3 gO3/Nm3
Air/Oxygen flow 17 lpm
Power supply 230V,v50-60Hz
Electric Power 160W
Gas connection IN/OUT Tube 8 mm (outside diameter).
Weight 6,5 KG
Noise 60 dBA

Working Conditions

Humidity <70%
Room temperature 5-35ºC
Source gas The equipment is powered by ambient air
Gas quality The environment must be free of grease and VOC`S <150 ppm
Working pressure 0,01 bar

Room fittings

Place in a clean and dry space, free of fats and fumes.

Additional Information

Made by ZonoSistem
Made in Spain
Sold from 2010
Certificates CE, EUOTA, BIOCIDA
Warranty 2 years. Indefinitely extendable if you have a maintenance contract.


Pressing the START button starts the air pump, and begins to suck in air from the environment. This air is dried, filtered and led to the generation core. With the flow meter you can regulate the desired air flow. When you press the GENERATE button, the generation core will start generating ozone.

To regulate the desired ozone power, use the potentiometer.

Documentation Included

  • Safety manual.

  • User manual, installation and commissioning.

  • Maintenance manual.

  • Declaration of conformity.

  • Certificate of guarantee.

  • Compliance with the biocidal regulation.

  • Results of the Quality Test in the factory.


This ozone generator uses high frequency corona discharge technology with a borosilicate dielectric.
