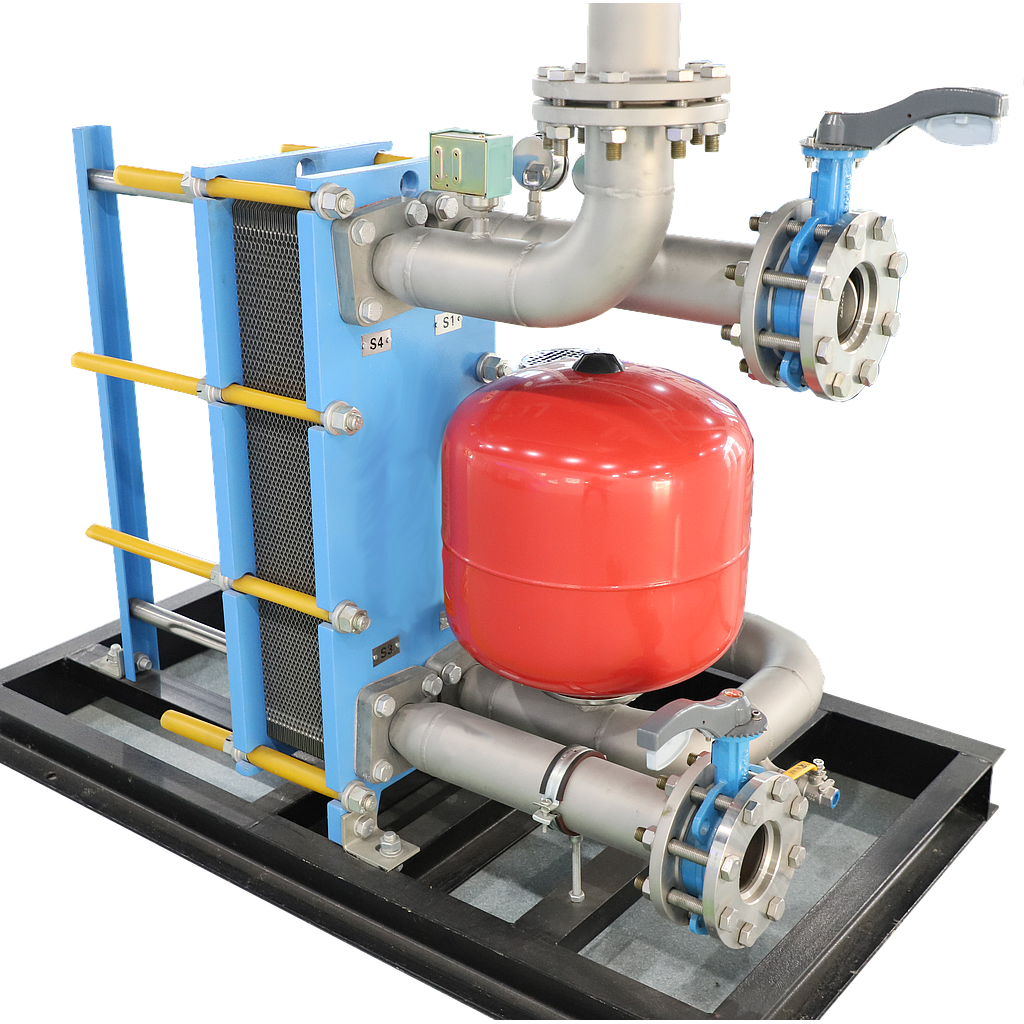

REFRIGERATION SYSTEM BY EXCHANGER 20M3/H - 10K
Cooling system by heat exchanger for ozone generator up to 10 KgO3/h. With 3P, 400V, 50HZ, 1.5KW power supply.
Includes:
Heat exchanger.
Primary recirculation pump.
Primary expansion tank.
Primary and secondary visual manometer.
Primary pressure switch.
Primary input and output temperature transmitter.
Rotameter with secondary flow switch.
Secondary visual manometer and thermometer.
Primary gas purge valve.
Primary fill and drain valve.
All mounted on bench.
CE marking.
Features:
Primary connection input and output DN 80.
Secondary input and output connection DN80.
Power supply. 3P, 400v, 50hz.
Consumption: 1.5 kW.
Height of water raised by the pump: 20 m.
Length x width x height: 2000 x 1150x 1300mm.
Weight: 1000Kg.
Requirements:
It requires a water supply of 36m3/h at 5-28ºC at a pressure of 1 - 6 bars.
Do not install outdoors.
Water quality:
pH level: 6,5 ≤ pH ≤ 8,5
Turbidity: ≤ 1 NTU
COD: ≤ 50 mg/L
Chloride content: ≤ 250 mg/L
Suspended matter: ≤ 10 mg/L
Hardness: ≤ 450 mg/L
Solids-free.
Check delivery time
What is the heat exchanger cooling system for?
It serves to extract the heat produced during the ozone generation process, ultimately to keep the generation shell and the high-pressure transformer at the correct temperature. This system has the advantage of low power consumption, but requires a high water flow rate for secondary cooling. Especially recommended for use in ETAP.
