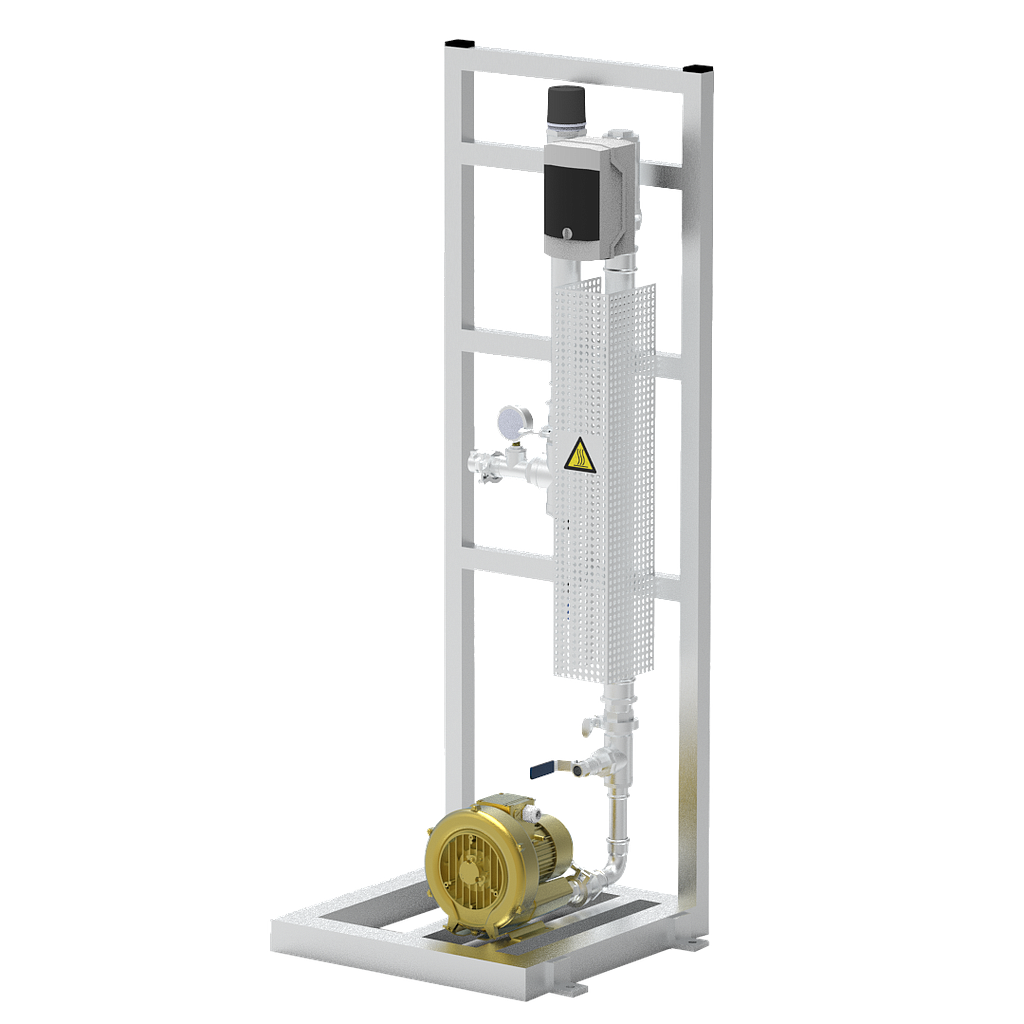

THERMO-CATALYTIC DESTRUCTOR DOTC60-AE
Thermocatalytic Ozone Destroyer for Atmospheric Pressure Tanks, with the capacity to destroy an ozone flow rate of up to 60lpm, with 220V, 50 Hz, 900 W power supply.
This ozone destroyer has been specifically designed for the extraction of residual ozone from atmospheric pressure tanks, ensuring efficient and silent gas destruction. Thanks to its Carulite® 200 catalytic bed, suction turbine, and integrated preheating system, it converts ozone into oxygen without generating waste or requiring constant maintenance. Ideal for installations where ozone must be evacuated in a controlled and safe manner, without risk to the environment or personnel.
Includes:
Suction blower.
Electric preheating resistance with thermostat.
Catalytic bed filled with Carulite® 200.
316L stainless steel reaction chamber.
Manual vacuum regulating valve.
Electrical protection and control panel.
All mounted on a 304 stainless steel support.
Water trap with manual purge.
Optional automatic purge.
Features
99% destruction of ozone gas.
Nominal treatment flow rate 60lpm
Maximum gas concentration up to 150g/Nm3
GHSV > 5000 h⁻¹
Vertical mounting with floor anchoring.
Size: 560 x 560 x 1560 mm .
Inlet connection at 1" - H.
Purge connection 1/2".
IP65. Suitable for outdoor use.
CE marked.
Operating Requirements
Electrical supply 230v, 50-Hz. 900w.
Connect the destroyer to the atmospheric pressure tank.
Although prepared for outdoor installation, it is recommended to protect from sun and water.
Channel the destroyer's outlet to an open space.
Elements that poison the Carulite: sulfur compounds, hydrocarbons, heavy metals, Nox, chlorides and silicones.
Review performance every 6-12 months.
Replace Carulite every 2 years.
