Internal Reference:
DISMEDID.0038

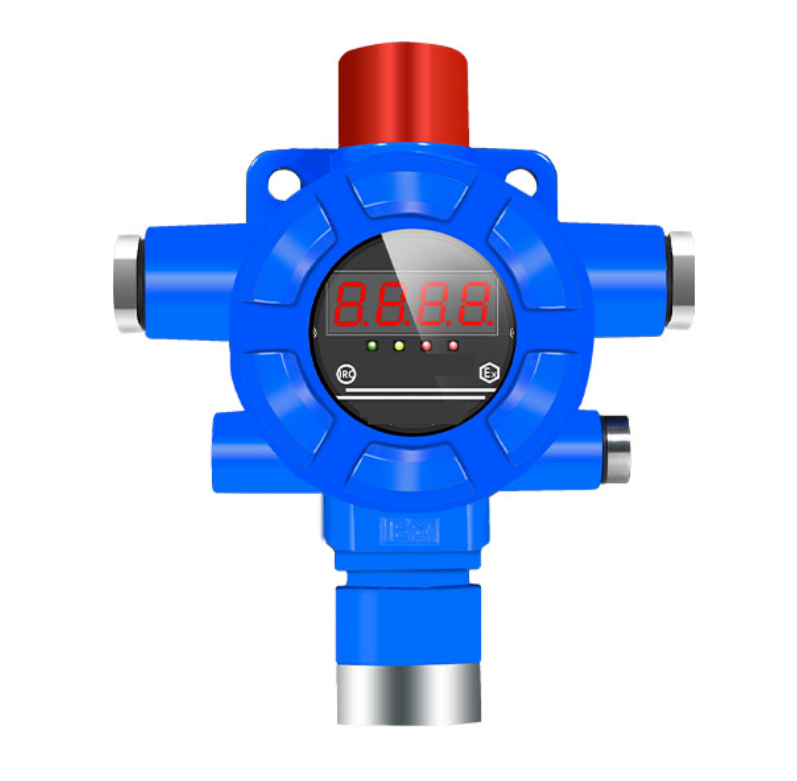

OXYGEN LEAK SENSOR 0-25%
Oxygen leak sensor with a measurement range of 0-25%, with analog output and acoustic beacon.
Includes:
With power supply at 230v, 50-60hz, 30w.
4-20mA output.
Relay output in case of alarm.
Acoustic beacon 90dBA
IP65.
CE marking.
Highly recommended
2 years warranty Check delivery time
What is the oxygen leak sensor for?
It is used to detect a possible oxygen leak in the room where the ozone generator is located. In case of detecting an oxygen leak, the device emits an analog and digital signal, to communicate it to a higher PLC, and activates an acoustic beacon for the safety of the operators. It is a recommended element, to be installed in rooms with generators of ozone fed with oxygen LOX or PSA.
Product Details
| Included in the equipment | Pantalla LCD de 2,0 pulgadas |
| Communication |
Comunicaciones RS-485 Salida analógica 4-20 mA |
| Measuring range | 0-25%/30%/100% |
| Power supply | 12-36VDC |
| Work temperature | -40℃ - 70ºC |
| Response time | ≤10s |
| Humedad de trabajo | 0-90% (sin condensación) |
| Resolution | 0,01% |
| Protection | IP65 |
| Dimensions | 180 x 150 x 90mm |
| Weight | 1,6kg |
