HIDRO VT GRZO Range

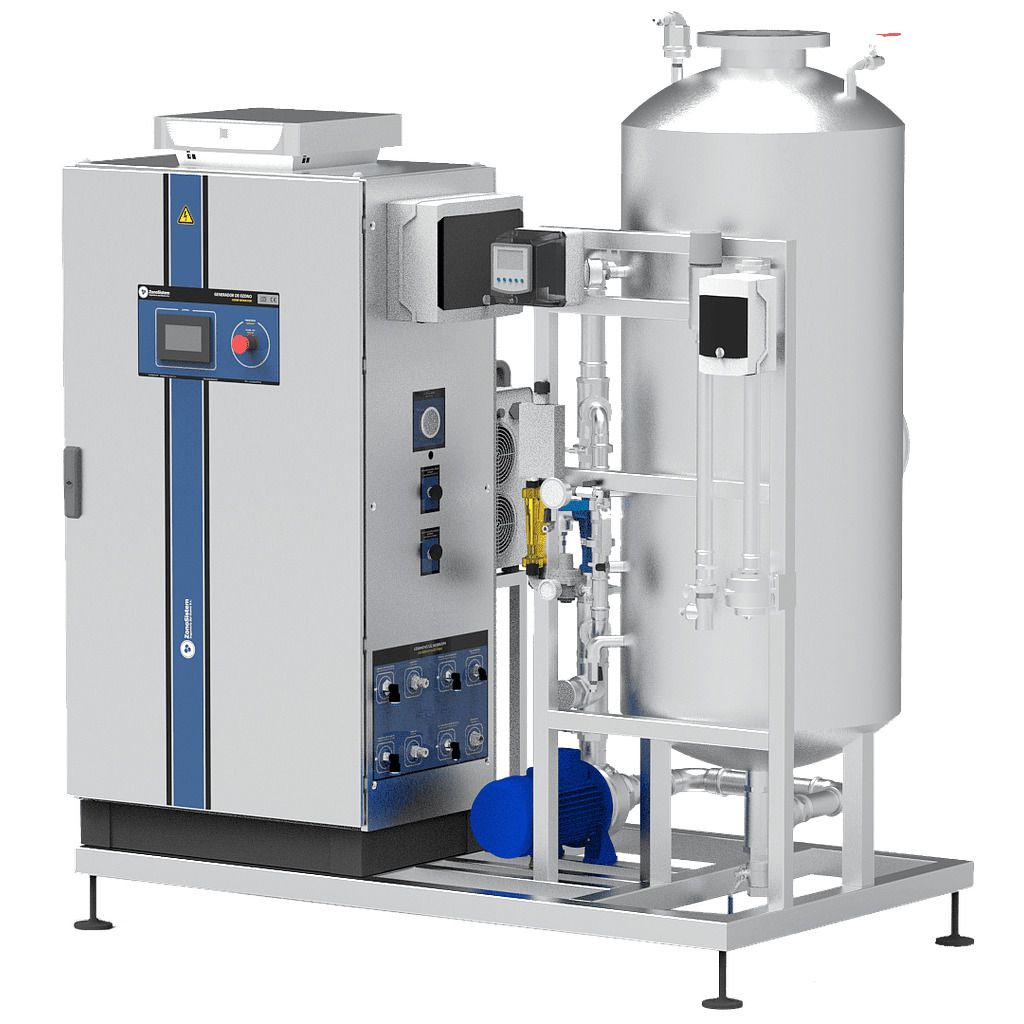

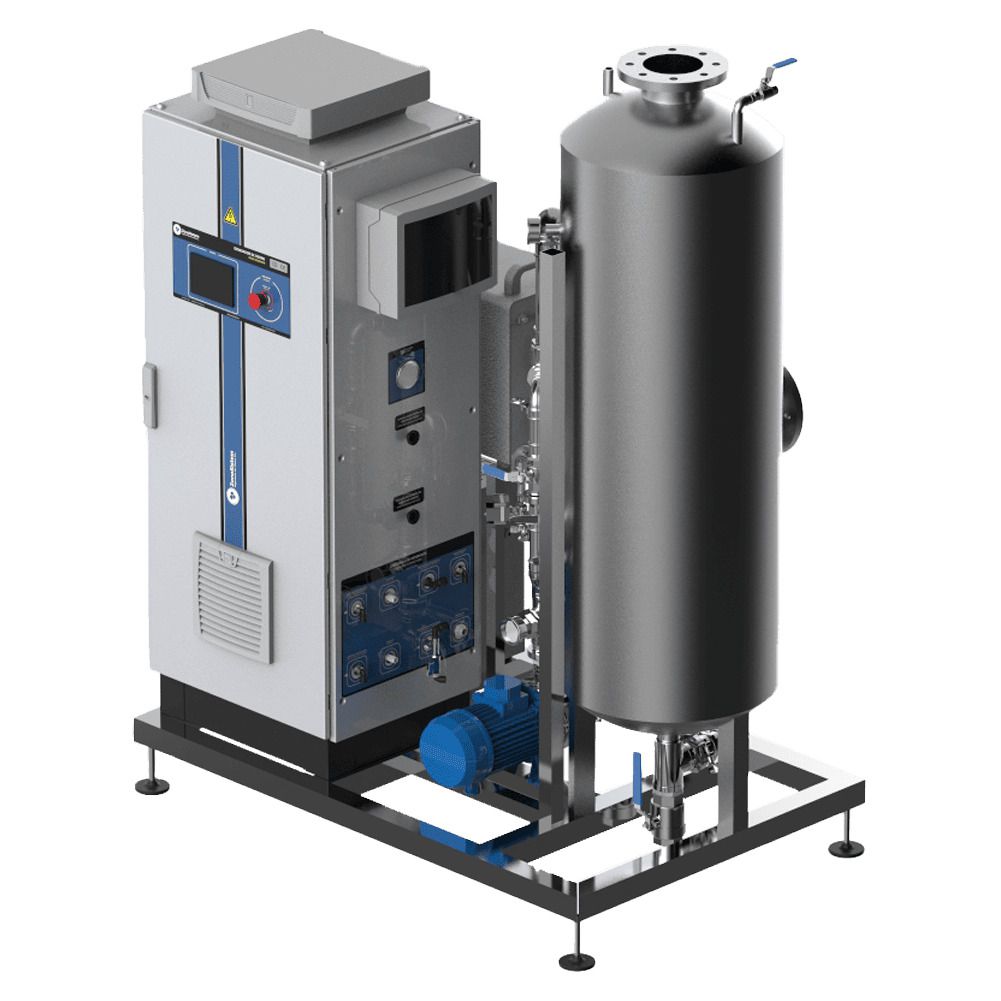

Hydro Plants Line. Compact and integrated high-capacity generator. Ozonizes a pressurized water flow
Description
Latest generation ozone plant, equipped with: ozone generator, piston compressor, oxygen concentrator with activated alumina, filtration unit, refrigerated dryer and chiller. With air-cooled ozone generation cores, with borosilicate dielectric.
Ozone injection system with pump, venturi and INOX pressurization and mixing tower, with regulation of the aspirated ozone flow through a bypass. Stainless steel 316 L pipes.
Latest generation control by PLC with touchscreen, with automatic ozone power regulator with PID based on Redox/Ozone, recipe manager, weekly schedule planner, maintenance manager, alarm manager, graph display, remote access, and data logging. Includes Redox meter.
Difference between models
| Main Models | HIDRO VT GRZO 80 | HIDRO VT GRZO 120 |
| Ozone Production | 80 gO3/h | 120 gO3/h |
| Hydro Pump | 12 m3/h - 2.3 bar | 21 m3/h - 2.3 bar |
| Electrical Supply | 400 V, 3P + N 50 Hz | 400 V, 3P + N 50 Hz |
| Power Consumed | 5.5 Kw | 7.9 Kw |
| Ø Hydraulic Connections | Brida DN100 | Brida DN100 |
| Weight | 220 Kg | 260 Kg |
| Width x Height x Depth cm | 145 x 192 x 90 | 180 x 196 x 96 |
If you need more information or have any questions about the differences between the models, please do not hesitate to contact our sales team. We will advise you to choose the option that best suits your needs. Contact here.
Equipment
| Equipment |
|
| Ozone Generator | ✔ Included |
| Refrigerated Dryer | ✔ Included |
| Pump, Venturi and Tank | ✔ Included |
| PLC and touchscreen | ✔ Included |
| Redox Controller | ✔ Included |
| Ozone Leak Sensor | ✔ Included |
Optional
-
Ozone Meter
-
Gasification Kit
