HIDRO VT GZO Range

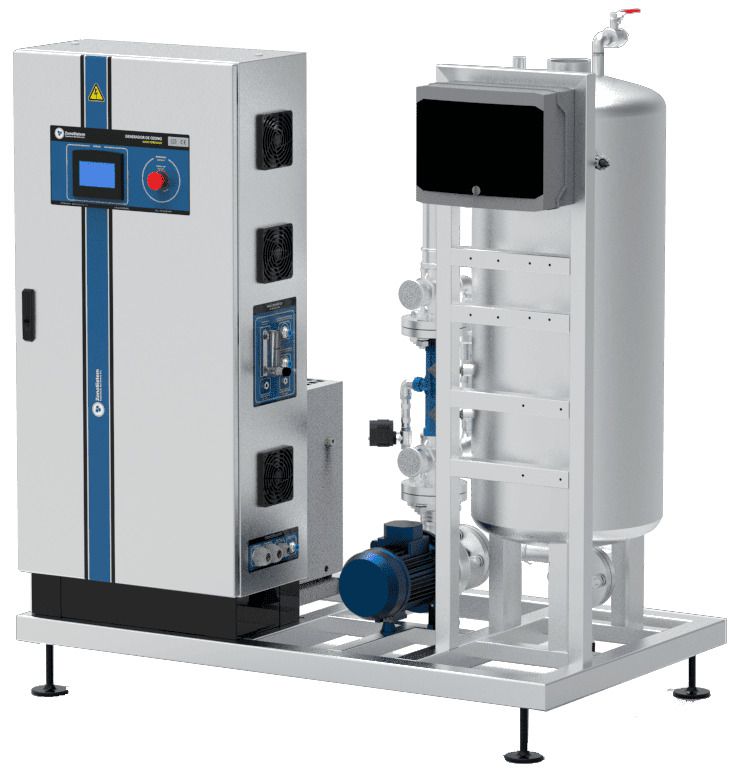

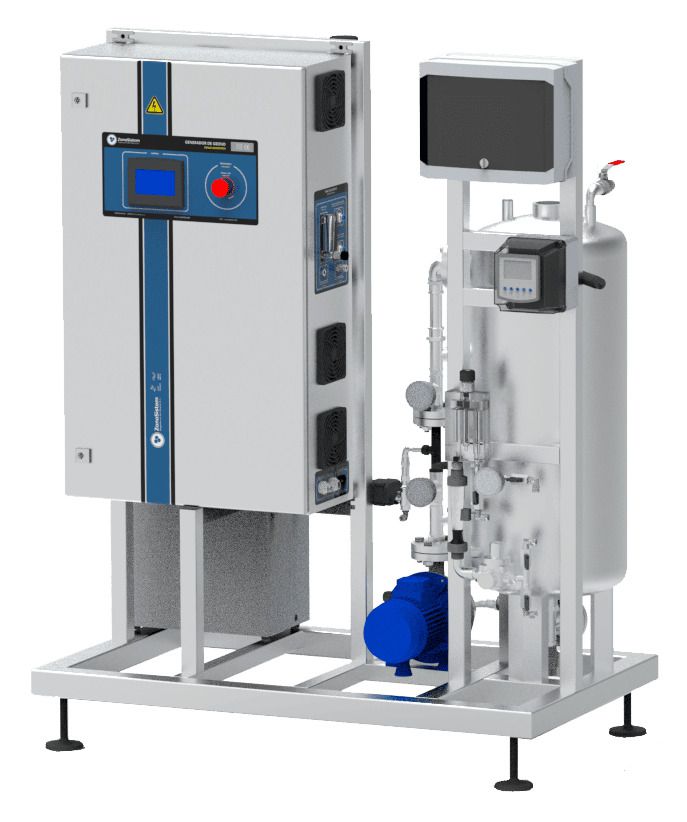

Hydro Plants Line. Compact and integrated high-capacity generator. Ozonizes a pressurized water flow
Description
Latest generation Ozone Plant, equipped with: GZO range ozone generator, with piston compressor, oxygen concentrator with activated alumina, filtration unit and refrigerated dryer. With air-cooled ozone generation cores, with borosilicate dielectric.
Ozone injection system with pump, venturi, pressurization and mixing INOX tower, with regulation of the aspirated ozone flow by means of a bypass. 316L stainless steel pipes.
Latest generation control by PLC with touch screen, with automatic regulation of ozone power with PID loop based on Redox/Ozone, recipe manager, weekly schedule planner, maintenance manager.
Difference between models
| Main Models | HIDRO VT GZO 7 | HIDRO VT GZO 12 | HIDRO VT GZO 20 | HIDRO VT GZO 40 |
| Ozone Production | 7 gO3/h | 12 gO3/h | 20 gO3/h | 40 gO3/h |
| Hydro Pump | 4,5 m3/h - 2.3 bar | 4,5 m3/h - 2.3 bar | 4,5 m3/h - 2.3 bar | 6,0 m3/h - 2.3 bar |
| Power Supply | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz | 400 V, 3P + N 50 Hz |
| Power Consumption | 1.4 Kw | 1.5 Kw | 1.6 Kw | 3.2 Kw |
| Hydraulic Connections | 2" Female Thread | 2" Female Thread | 2" Female Thread | 3" Female Thread |
| Weight | 120 Kg | 130 Kg | 135 Kg | 190 Kg |
| Width x Height x Depth cm | 122 x 175 x 72 | 122 x 175 x 72 | 122 x 175 x 72 | 140 x 150 x 82 |
If you need more information or have any questions about the differences between the models, do not hesitate to contact our sales team. We will advise you to choose the option that best suits your needs.Contact here.
Equipment
| Equipment |
|
| Ozone Generator | ✔ Included |
| Refrigerated Dryer | ✔ Included |
| Pump, Venturi and Tank | ✔ Included |
| PLC and touch screen | ✔ Included |
| Redox Controller | ✔ Included |
| Ozone Leak Sensor SM41 | ✔ Included |
Optional
-
Dissolved Ozone Meter
-
Degassing Kit
