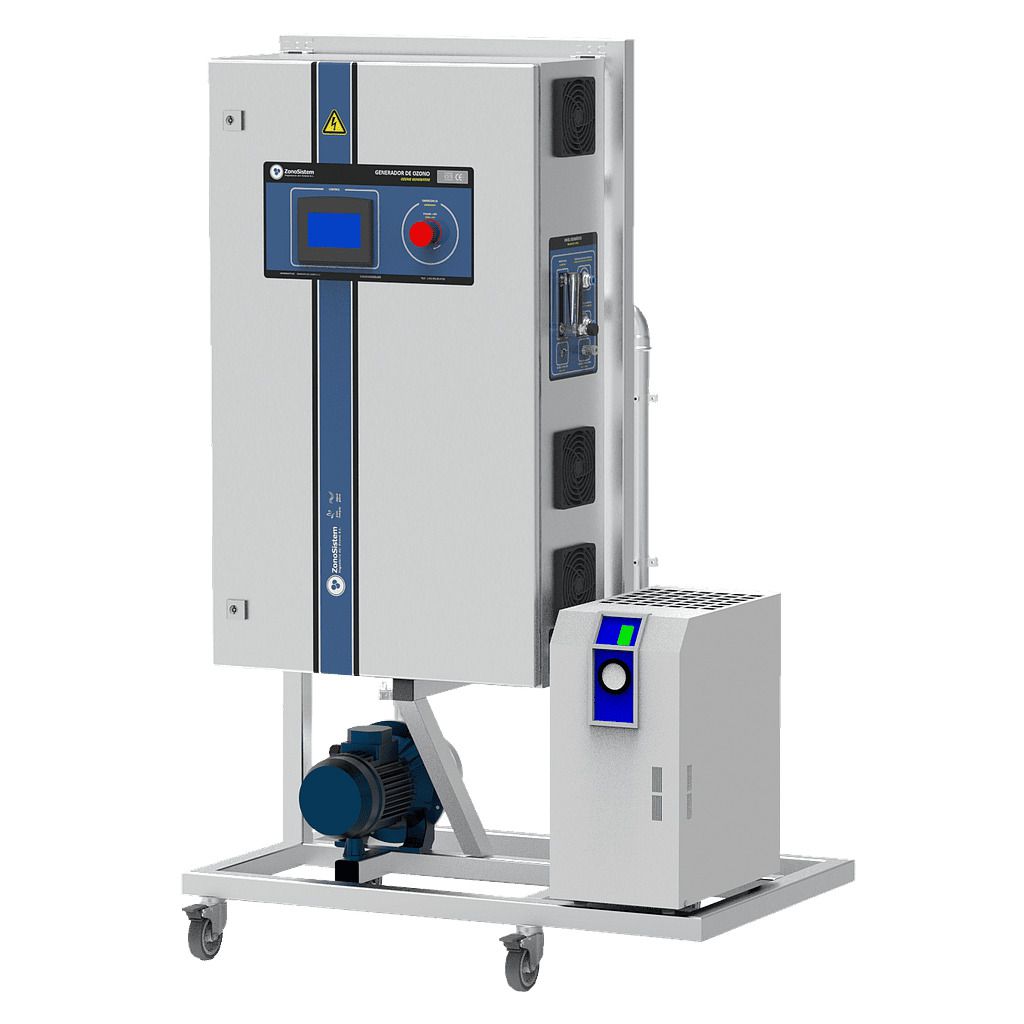

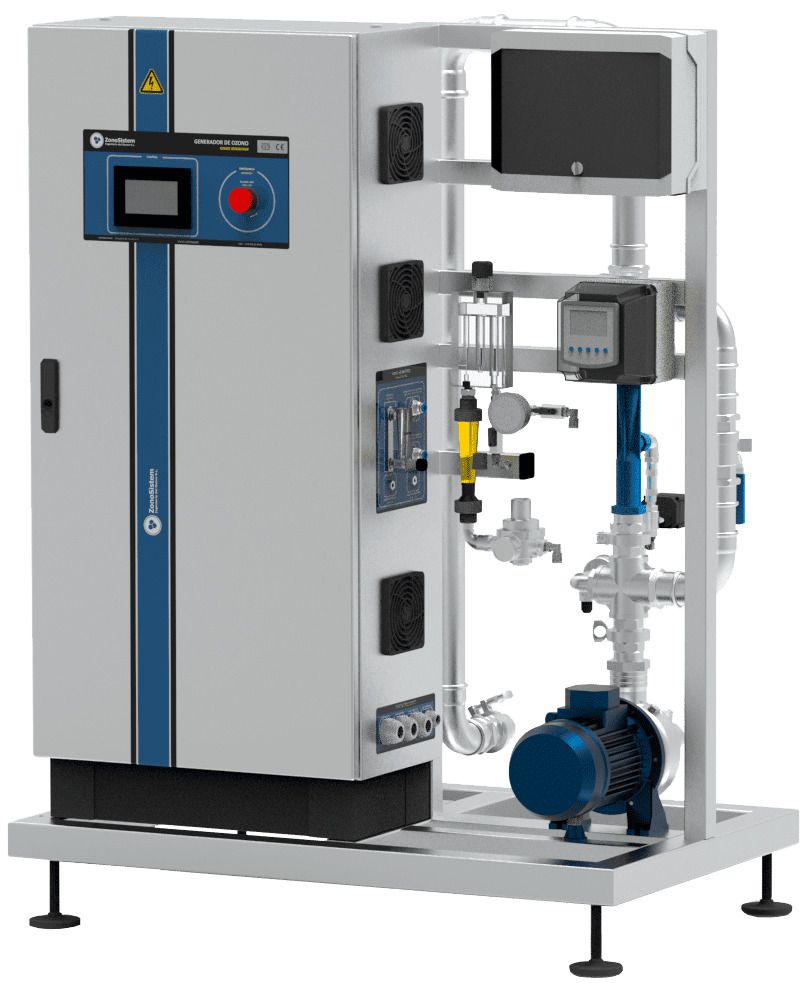

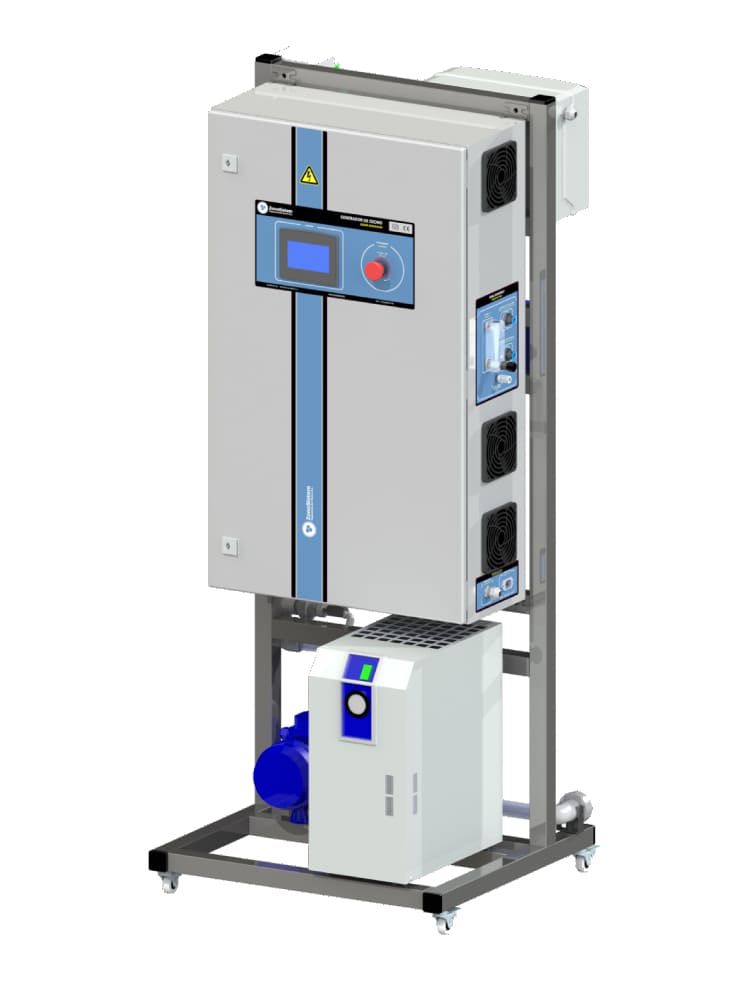

HIDRO V GZO Range
Hydro Plants Line. Compact and integrated high-capacity generator. For recirculation and ozone injection in atmospheric or pressurized tanks.
Description
Latest generation industrial ozone plant, equipped with: ozone generator GZO range with piston compressor, oxygen concentrator with activated alumina, filtration unit and dryer. With ozone generation core water-cooled, with borosilicate dielectric.
Ozone injection system with pump, venturi, non-return, solenoid valve, inox frame, with regulation of the ozone flow aspirated through a bypass. Stainless steel 316L pipes.
Latest generation control automatic ozone power with PID loop based on Redox/Ozone, dose programmer, weekly schedule planner, maintenance manager, alarm manager, graph visualization, remote access (optional) and data logging. Includes the Redox meter.
Difference between models
| Main Models | HIDRO V GZO 7 | HIDRO V GZO 12 | HIDRO V GZO 20 | HIDRO V GZO 40 |
| Ozone Production | 7 gO3/h | 12 gO3/h | 20 gO3/h | 40 gO3/h |
| Hydro Pump | 6 m3/h | 6 m3/h | 6 m3/h | 22 m3/h |
| Electrical Supply | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz | 400 V, 3P + N 50 Hz |
| Power Consumed | 1.4 Kw | 1.5 Kw | 1.6 Kw | 3.2 Kw |
| Hydraulic Connections | 2" Female Thread | 2" Female Thread | 2" Female Thread | 3" Female Thread |
| Weight | 120 Kg | 130 Kg | 135 Kg | 190 Kg |
| Width x Height x Depth cm | 122 x 175 x 72 | 122 x 175 x 72 | 122 x 175 x 72 | 140 x 150 x 82 |
If you need more information or have any questions about the differences between the models, do not hesitate to contact our sales team. We will advise you to choose the option that best suits your needs.Contact here.
Equipment
| Equipment |
|
| Ozone Generator | ✔ Included |
| Pump, Venturi | ✔ Included |
| PLC and Touch Screen | ✔ Included |
| Redox Controller | ✔ Included |
| Ozone Leak Sensor SM41 | ✔ Included |
Optional
-
Dissolved Ozone Meter
