GRZO HIDRO V Range

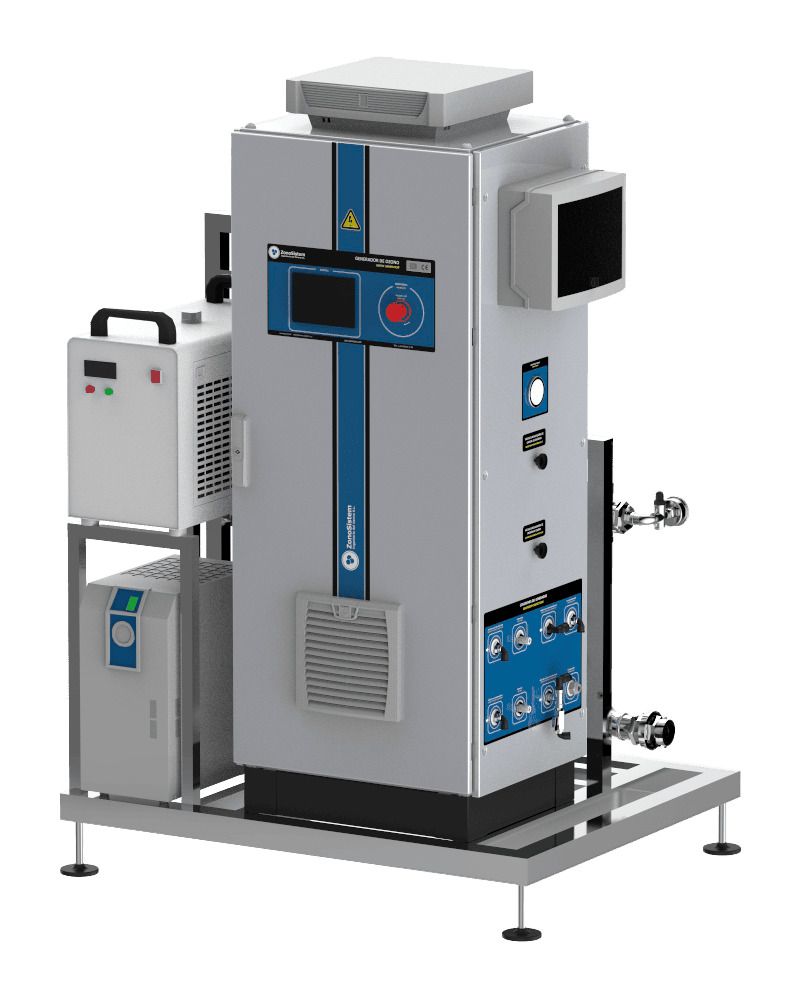

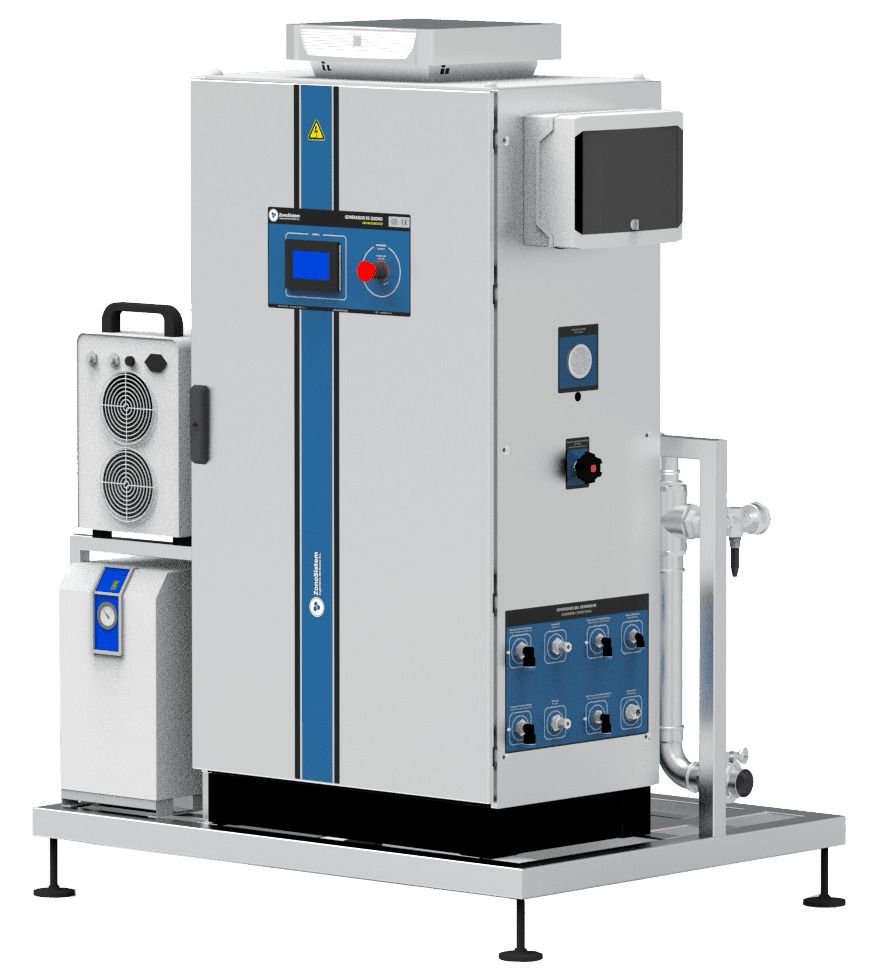

Hydro Plants Line. Compact and integrated high-capacity generator. For recirculation and ozone injection in atmospheric or pressurized tanks.
Description
Latest generation Industrial Ozone Plant equipped with: GRZO range ozone generator with piston compressor, activated alumina oxygen concentrator, filtration unit, dryer and chiller. With water-cooled ozone generation cores, with borosilicate dielectric.
Ozone injection system with pump, venturi, non-return, solenoid valve, stainless steel skid, with regulation of the aspirated ozone flow through a bypass. Stainless steel 316L pipes.
Latest generation control by PLC with touch screen, automatic ozone power regulator with PID loop depending on Redox/Ozone, dose programmer, weekly schedule planner, maintenance manager, alarm manager, graph visualization, remote access (optional) and data logging. Includes the Redox meter.
Model differences
| Main models | HIDRO V GRZO 80 | HIDRO V GRZO 120 |
| Ozone Production | 80 gO3/h | 120 gO3/h |
| Hydro Pump | 30 m3/h | 42 m3/h |
| Electrical Supply | 400 V, 3P + N 50 Hz | 400 V, 3P + N 50 Hz |
| Power Consumed | 5.5 Kw | 7.9 Kw |
| Ø Hydraulic Connections | DN 100 Flange | DN 150 Flange |
| Weight | 220 Kg | 260 kg |
| Width x Height x Depth cm | 145 x 192 x 90 | 180 x 196 x 96 |
If you need more information or have any questions about the differences between the models, please do not hesitate to contact our sales team. We will advise you to choose the option that best suits your needs. Contact here.
Equipment
| Equipment |
|
| Ozone Generator | ✔ Included |
| Pump, Venturi | ✔ Included |
| PLC and Touch Screen | ✔ Included |
| Redox Controller | ✔ Included |
| Ozone Leak Sensor SM41 | ✔ Included |
Optional
-
Dissolved Ozone Meter
